FIGURE 12

FIGURE 13

D. The Squall Line Thunderstorms:

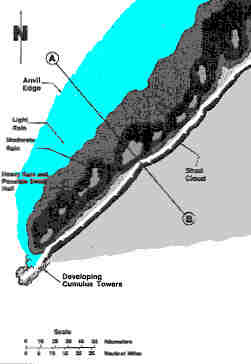

Figure 12 is a view of a squall line as seen from above. Precipitation is shown in the diagram's central area, the gust front is the white line with teeth, and the anvil edge is in light blue. While any hail which may occur Is usually smaller than that occurring In the tornadic thunderstorm and considerably fewer tornadoes result, strong straight-line winds are common with squall lines. The strongest winds usually occur a few minutes after the gust front passage, just before or just after rain and hail begin. If tornadoes occur, they are generally weak, short-lived, and are found along the gust front. occasionally, a tornadic thunderstorm will develop in association with a squall line.  These storms are most often on the south end or ahead of the squall line. The most distinctive cloud associated with the squall line is the Shelf Cloud, shown in Figure 12. It is usually located above the squall line gust front. An individual tornadic thunderstorm or even an Isolated non-severe thunderstorm may at times develop a shelf cloud associated with its gust front.
     Before we look closer at the shelf cloud, let's take a look at a vertical cross section of the squall line from point A to B in Figure 12. This Is shown In Figure 13. Note that the squall line thunderstorm has a significantly different structure that the tornadic thunderstorm. in Figure 13, the squall line is moving from left to right.
